WT600J-2A

Product description

This product has a high degree of protection and can be adapted to multi-channel applications

Main features: large output torque, low vibration, high efficiency, maintenance-free; using DC brushless motor drive, dedicated integrated circuit closed-loop control

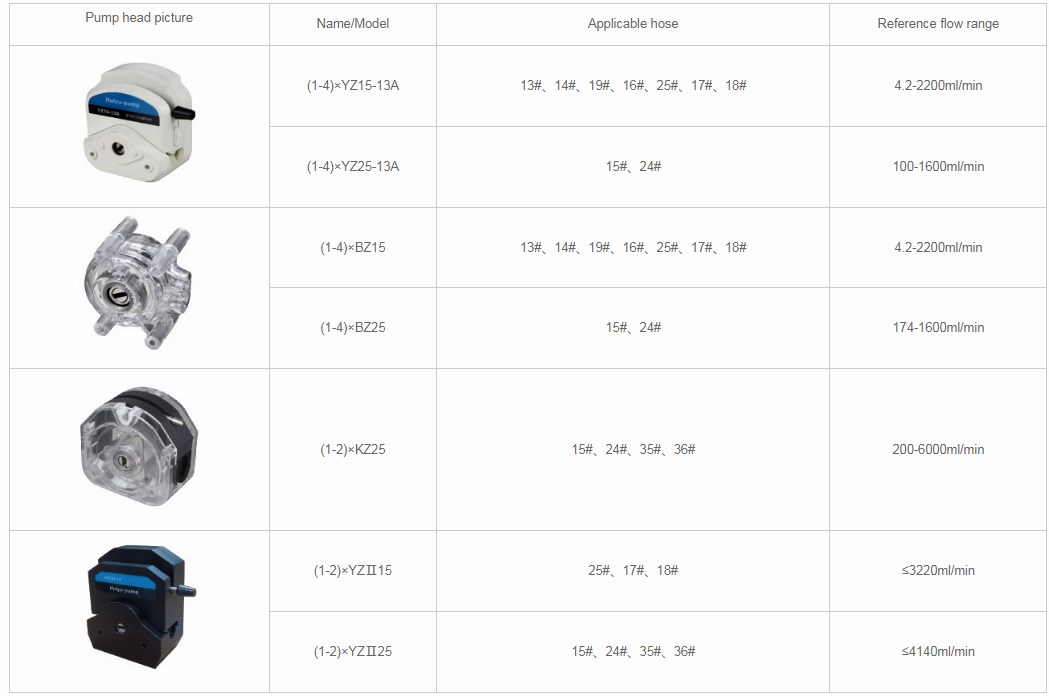

Can drive a variety of multi-channel pump heads, single-channel flow range: 4.2-6000ml/min

Features

◇ High protection level: suitable for harsh environments with more humidity and dust

◇ Full speed function key: fast cleaning, emptying function

◇ Memory function: automatic storage of speed, running direction, machine number

◇ Communication function: with RS485 communication function, control the work of the pump

◇ Display function: 3-digit LED digital tube speed display function

◇ External control interface input function: you can control the speed, start and stop, and the direction of rotation

◇ A variety of pump heads and hoses can be installed, which expands the scope of use and is convenient for customers

◇ Large torque output, which can drive multi-channel pump head to work

◇ Driven by DC brushless motor, large output torque, maintenance-free

◇ Switch button operation mode, simple and practical

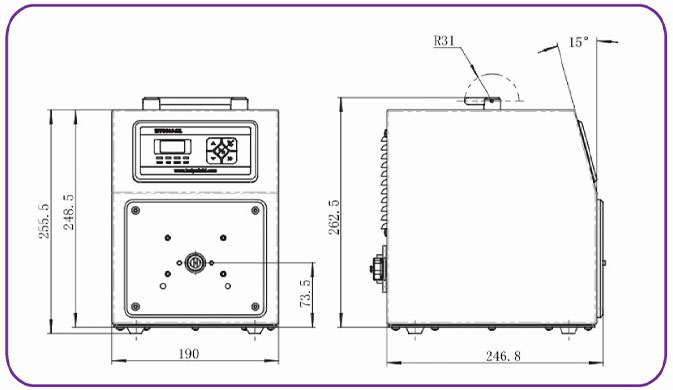

Dimensions

Technical parameter

◇ Speed range: 60-600pm

◇ Speed control accuracy: ≤±1.0%

◇ Speed resolution: 1.0rpm

◇ Output torque: 1.5N.m

◇ Display mode: 3 LEDs display the current speed; 4 LEDs respectively indicate the working status

◇ Memory function: automatically save operating parameters

◇ External control speed regulation function: 0.5-5V/1-10V/4-20mA/1-10KHz corresponding to 60-600rpm optional

◇ Communication interface: RS485 mode

◇ Working environment: ambient temperature 0-40℃

◇ Relative humidity: <80%

◇ Power supply mode: 220V AC±20% 50Hz/60Hz

◇ Power consumption: ≤200W

◇ Dimensions: 250×190×260 (length×width×height) mm

◇ Degree of protection: IP55

◇ Drive weight: 8kg
