BT600J-1A

Product description

The stepper motor is subdivided and driven, and the speed is 600 rpm, which can provide a flow of 2200ml/min; the top of the casing is designed with a handle, which is convenient for moving and carrying the body. This pump is used in conjunction with the sub-packing controller FK-1A, which can realize the filling function, and the operation is simple and intuitive

Features

◇ MAX key: with filling and emptying functions

◇ Rotation speed can be adjusted manually or controlled by external control interface

◇ Power-down memory function: After power-on again, it will work according to the state of the last power-off

◇ With RS485 communication function, external control analog quantity and pulse control function

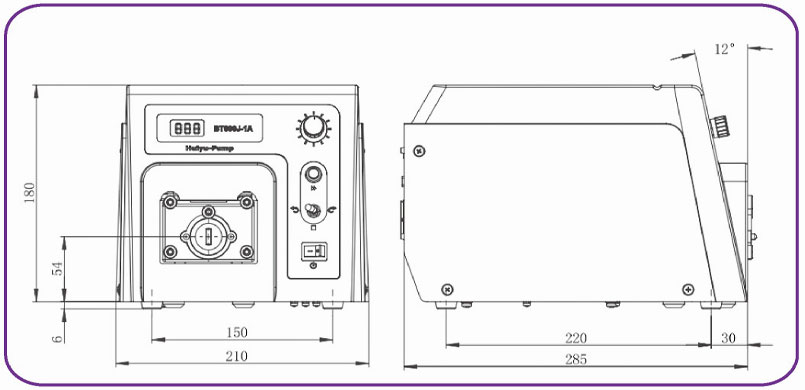

Dimensions

Technical parameter

◇ Speed range: 1-600 rpm forward and reverse reversible

◇ Speed resolution: 1 rpm

◇ Control mode: knob combined with button, support external signal control and communication control

◇ Display mode: 3-digit LED speed display

◇ External control function: start-stop control, direction control, speed control ((0-5V, 0-10V, 0-10KHZ optional)

◇ Communication interface: RS485

◇ Power-down memory: After power-on, it can continue to work according to the state before power-off

◇ Full speed function: One key to control full speed work, used for filling, emptying, etc.

◇ Dimensions: 290×210×186 (length×width×height) mm

◇ Applicable power supply: AC 90V-260V

◇ Work rate: ≤100W

◇ Working environment: temperature 0℃-40℃, relative humidity <80%

◇ Degree of protection: IP31

◇ Weight: 3.8Kg
