WT600J-1A

Short Description:

.DC brushless motor drive,High efficient,low vibration.

high torque and manitenance free

Multi control modes: can be controlled by analog singals via standard ex-control port and communication control with PC.


Product Detail

Product Tags

Product description

Driven by a DC brushless motor, it has the characteristics of high efficiency, low vibration, large torque and maintenance-free

It has a variety of control methods, which can be controlled by external analog quantity and communication through the standard external control interface

Features

◇ Equipped with RS485 communication function to control the work of the pump

◇ 3-digit LED digital tube speed display information

◇ External control interface input function: can control the speed, start and stop, and direction of rotation

◇ It is suitable for a variety of pump heads and hoses, which expands the scope of use and is convenient for customers to use

◇ Large torque output, which can drive dual channel pump head to work

◇ Driven by DC brushless motor, with large output torque and maintenance-free

◇ Simple and practical operation of switches, buttons and knobs

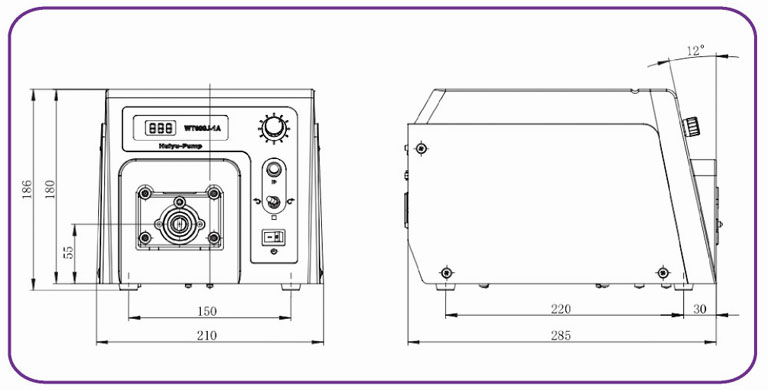

Dimensions

34

Technical parameter

◇ Speed range: 60-600 rpm, reversible forward and reverse

◇ Speed adjustment resolution: 1rpm

◇ Speed control accuracy: ≤±1%

◇ Control method: knob combined with button, left stop right switch, support external signal control and communication control

◇ Display mode: 3-digit LED speed display

◇ External control function: start-stop control, direction control, speed control (4-20mA, 0.5-5V, 0-10V, 0-10kHz optional)

◇ Communication interface: RS485

◇ Power-down memory: After power-on again, it can continue to work according to the state before power-off

◇ Full speed function: One key to control full speed work, used for filling, emptying, etc.

◇ Applicable power supply: AC 220V ±20%/200W

◇ Working environment temperature: 0℃-40℃

◇ Relative humidity of working environment: <80%

◇ Dimensions: 290x210x186 (length x width x height) mm

◇ Degree of protection: IP31

◇ Weight: 3.8Kg

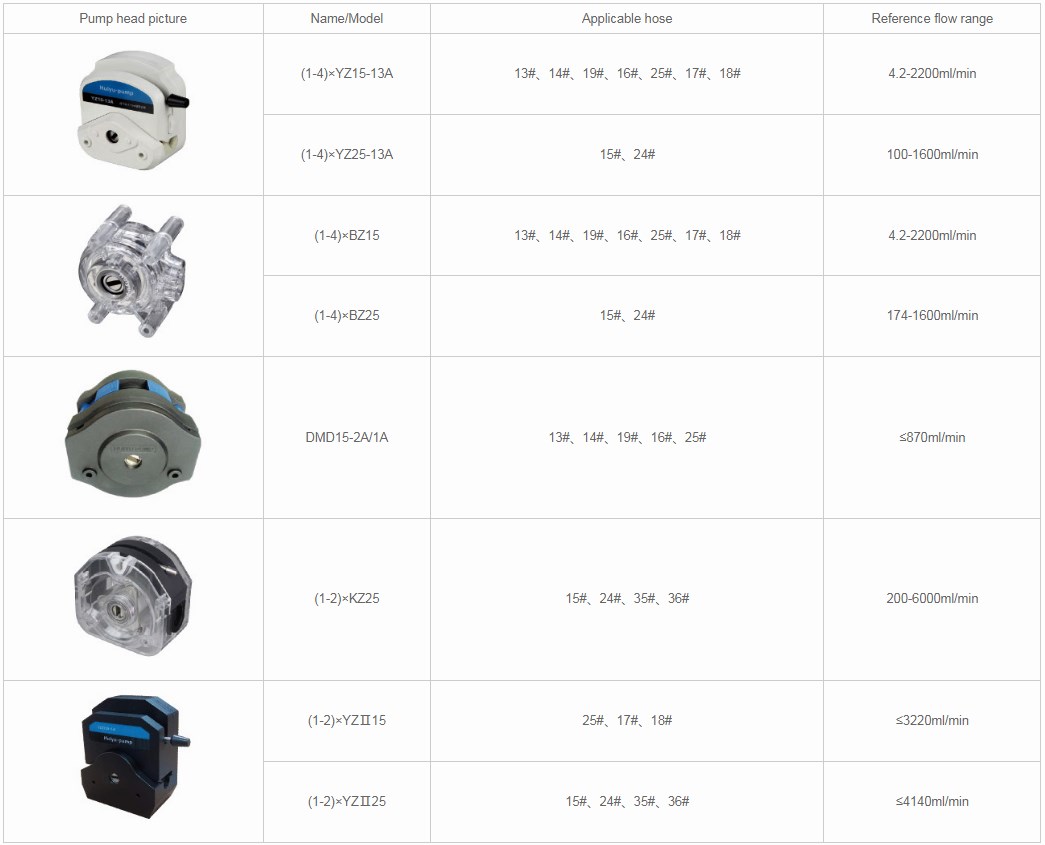

35
