Battery powered peristaltic pump BX100J-1A

Products description

Suitable for precision fluid transfer in laboratory and industrial purpose.The inlaid high capacity battery can power the pump 4-5hours continuously.Suitable for fild work.，Max motor speed:100rpm.flow rate0.0002-380ml/min.

It is a patented product of China government.

Features

◇　 Membrane keypad to control the running direction,start/stop,motor speed

◇　 Max speed key to effect prompt filling and emptying

◇　Communication with PC

◇　 External signal to control running direction,start/stop,motor speed.

◇   Memory function in case of power off

◇　Protection of electricity leakage

◇　Overtemperature protection

Technical parameters

◇　Motor speed：0.1-100rpm，resolution :0.1rpm

◇　Running direction：CW/CCW

◇　Operation ：by membrane key

◇　Display：3 digits LED indicate motor speed,4 bars LED show capacity of battery.

◇　Ex-control interface：start/stop、running direction、motor speed(0-5V/0-10V、4-20mA、0-10kHz signals are all available)

◇　Communication：RS485

◇　Power supply：high capacity rechargable battery

◇　Power consumption：30W

◇　Working environment：0-40℃，relative humidity<80℃

◇　Measurement：243×151×157(L×W×H)mm

◇　Weight：2.58kg

◇　IP rating：IP31

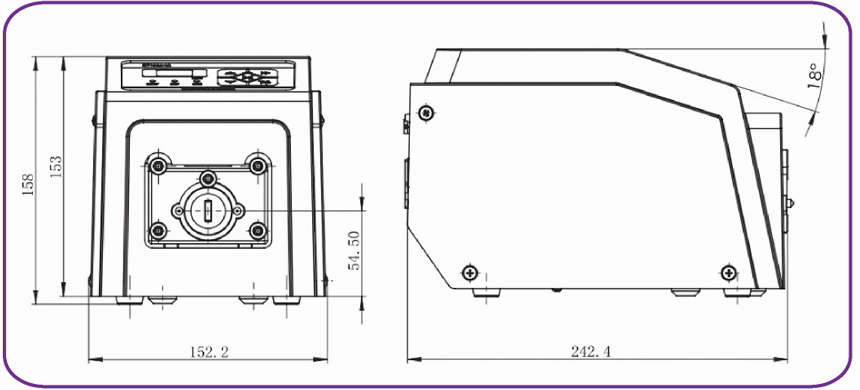

Dimensions
