JL350J-1A

product description

Mainly used in the production occasions of large flow fluid transmission, using AC geared motor drive, industrial frequency conversion speed regulation, drive and control split design, improve the protection level

Drum-shaped rollers and concave pressing block working surface coordinated structure, stable operation, automatic hose adaptation and low wear

The transparent protective cover can conveniently observe the operating status of the peristaltic pump, and the swing-pull pressure tube gap adjustment is convenient for operation

The whole pump adopts the design of separation of control and drive, which is convenient for users to remotely control, install and maintain

Features

◇ High-power peristaltic pump, flow rate up to 40L/min

◇ Drum-shaped roller and concave working surface structure, with hose self-positioning function, avoid unnecessary wear and extend hose life

◇ AC geared motor drive, frequency converter speed regulation

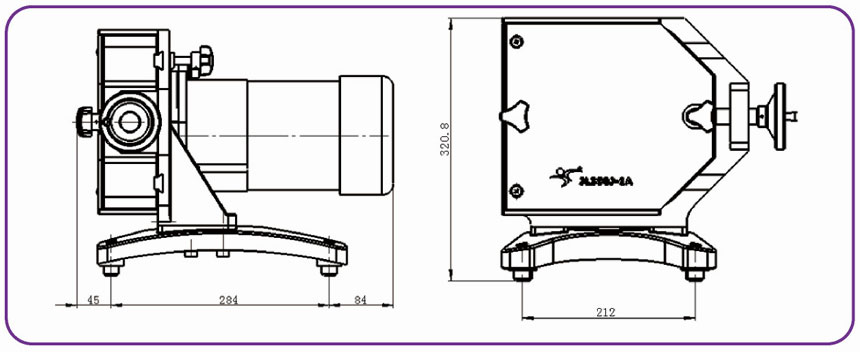

Dimensions

Technical parameter

♢ Speed: 30 to 350 rpm, reversible Max flow :35liter/min

♢ Speed precision: 0.6 rpm

♢ Speed control: rotary encoder switch, acceptable external control and communication control

♢ Display:  LED display

♢ Speed control signal input: 0-5V、0-10V、4-20mA

♢ Start and stop control signal input: switching control

♢ Direction control signal input: switching control

♢ Communication interface: RS485 and RS232

♢ Dimensions (L × W × H): 417×401×321 (mm)

♢ Power supply: AC 220V±20%

♢ Power consumption: < 400 W

♢ Operating condition: Temperature 0 to 40°C,

♢ Relative humidity < 80%

♢ IP rating: IP55

♢ Pump weight: 32 kg
