BT100J-1C

Technical parameter

◇ Rotation speed range: 0.1~100rpm Reversible forward and reverse

◇ Speed resolution: 0.1 rpm

◇ Adjustment method: continuous adjustment of membrane buttons

◇ Display mode: 3-digit LED digital speed display

◇ External control interface: start-stop control, direction control, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz optional)

◇ Applicable power supply: AC 220V±10% 50Hz/60Hz

◇ Power consumption: <30W

◇ Working environment: Ambient temperature 0~40℃ Relative humidity＜80%

◇ Dimensions (without pump head, length × width × height): 190×110×140 (mm)

◇ Drive weight: 2.0 Kg

◇ IP rating: IP55

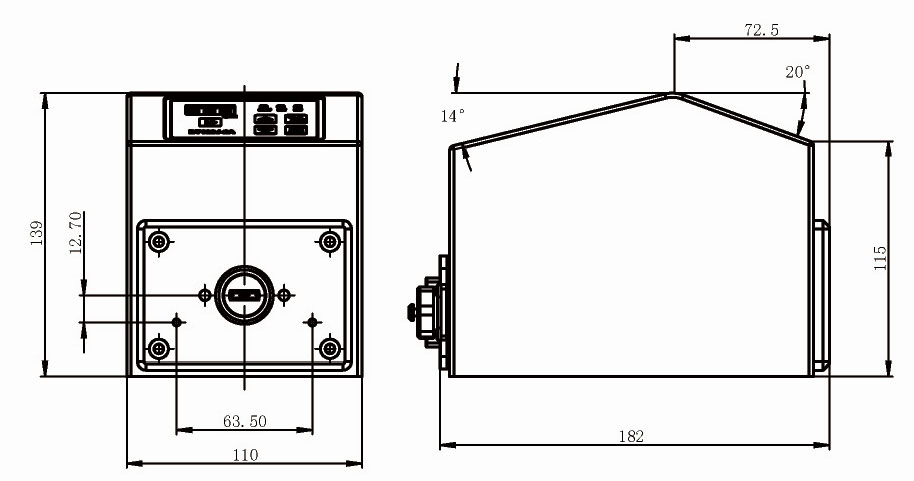

Dimensions
